NSL series sand suction pump

NSL series vertical sludge pumps and sand suction pumps are used to extract sand slurry from the bottoms of rivers, lakes, and ponds, as well as sludge impurities. They are suitable for supporting operations with drilling rigs and pile drivers, and are used in industries such as coal washing plants, machine tile factories, papermaking, mining selection plants, salt industry, and gold mining.

Email:

715116112@qq.com

WhatsApp:

+86-13663114444

INQUIRY
Product Catalog

Still decided? Get the samples first,Contact us!

Product classification

Sand suction pump

Keywords

Pump

Sand suction pump

  • Description

  • Overview

    NSL series vertical sludge pumps and sand suction pumps are used to extract sand slurry from the bottom of rivers, lakes, and ponds, as well as sludge impurities in ponds, and are compatible with drilling rigs and pile drivers. They are used in industries such as coal washing plants, machine tile factories, papermaking, mining selection plants, salt industry, and gold.

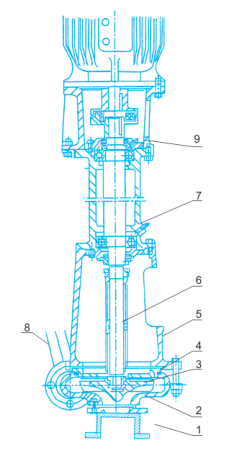

    Structural Diagram

    1. Suction Pipe
    2. Pump Body
    3. Impeller
    4. Guard Plate
    5. Bracket
    6. Shaft
    7. Bearing Box
    8. Discharge Pipe
    9. Motor Base

    Performance Parameter Table

    Model Type

    Flow (m3/h)

    		 Lifting Height m

    Speed (r/min)

    		 Efficiency %

    Matching Power (kw)

    50NSL-6

    50

    6

    1450

    56

    2.2KW-4

    80NSL-15

    50

    15

    1450

    60

    5.5KW-4

    80NSL-25

    70

    25

    1450

    61

    7.5KW-4

    80NSL-35

    60

    35

    1450

    56

    11KW-4

    80NSL-40

    48

    40

    1450

    65

    15KW-4

    100NSL-40

    80

    40

    1450

    57

    22KW-4

    100NSL-38

    70

    38

    1450

    55

    18.5KW-4

    100NSL-15

    120

    15

    1450

    54

    7.5KW-4

    100NSL-12

    100

    12

    1450

    55

    5.5KW-4

    100NSL-28

    90

    28

    1450

    52

    15KW-4

    100NSL-23

    75

    23

    1450

    55

    11KW-4

    100NSL-30

    80

    30

    1450

    45

    15KW-4

    100NSL-35

    100

    35

    1450

    45

    18.5KW-4

    125NSL-18

    150

    18

    1450

    61

    15KW-4

    150NSL-19

    250

    19

    1450

    70

    22KW-4

    150NSL-15

    200

    15

    1450

    70

    18.5KW-4

    150NSL-25

    180

    25

    1450

    70

    22KW-4

    200NSL-10

    480

    10

    1450

    55

    22KW-4

    200NSL-13

    370

    13

    1450

    55

    22KW-4

Quality rest assured

Source manufacturer

Model complete

Support customization

After-sales worry-free

Factory Scene

Factory environment (10)
Factory environment (9)
Factory environment (8)
Factory environment (7)

Workshop Equipment

Production Equipment (4)
Production Equipment (3)
Production Equipment (1)
Production equipment

Application Scenarios

Graphite Electrode Selection

Water treatment and water supply and drainage

Graphite Electrode Selection

Chemical Industry

Graphite Electrode Selection

electric power industry

FAQ

Does the company accept OEM/ODM orders?

The company accepts OEM/ODM orders and can customize product appearance, specifications, packaging, etc. according to customer requirements.

Does the company provide samples?

The company can provide samples according to customer needs, and the customer must bear the sample fee and shipping costs.

How does the company calculate shipping costs?

The freight is calculated based on factors such as the volume, weight, transportation method, and destination of the goods. Feel free to inquire for a detailed freight quote.

How does the company ensure the safety of goods?

The company uses professional packaging materials and reinforcement measures to ensure that goods are safe and intact during transportation.

How does the company arrange for the transportation of goods?

The company has a professional logistics team that can arrange sea, air, or land transportation according to customer needs and provide door-to-door service.

What payment methods does the company accept?

The company accepts various payment methods such as T/T, L/C, D/P, etc., for the convenience of customers to choose.
